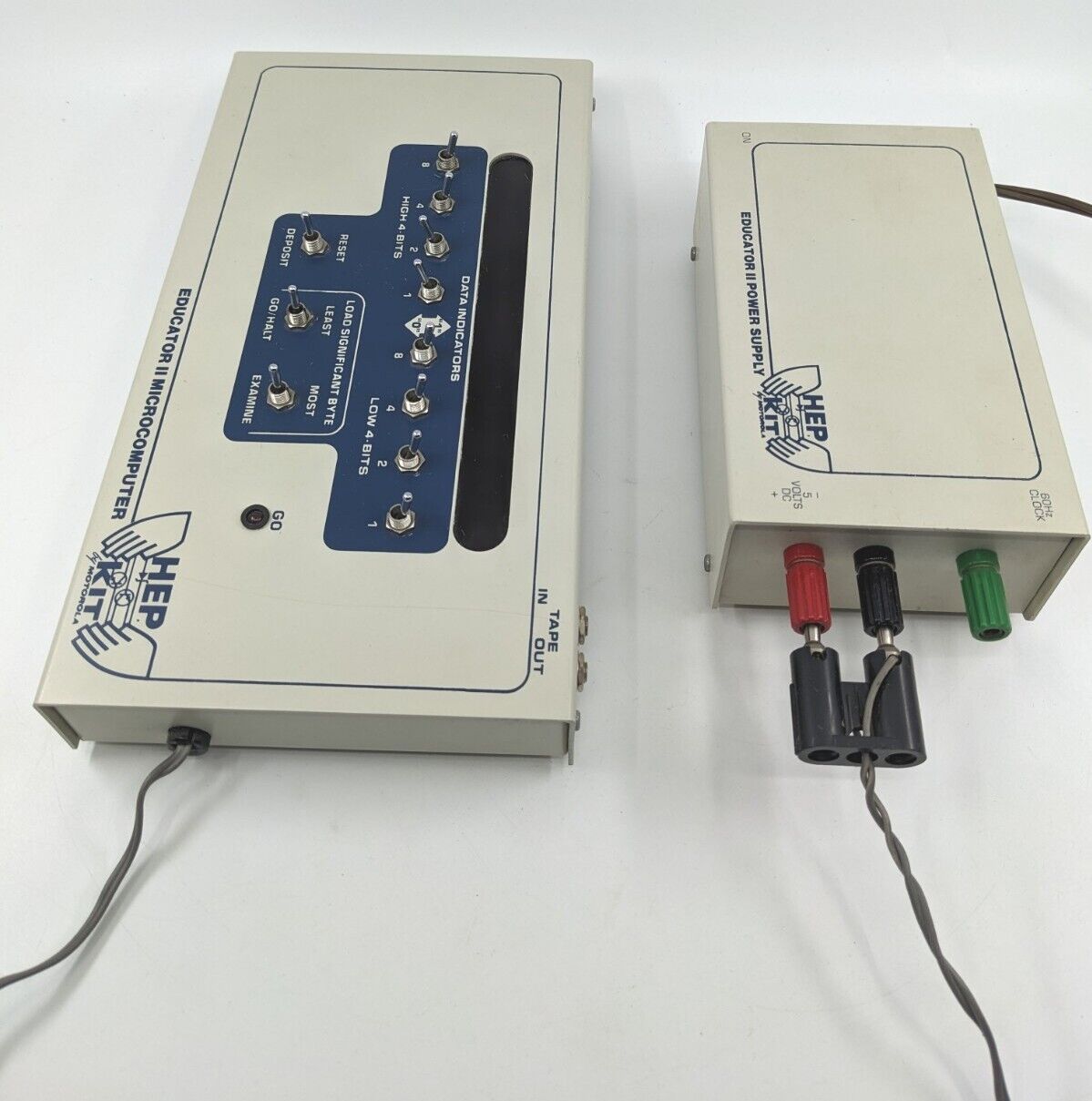

Motorola HEP Kit Educator II

../../../_images/hk1000.1.jpg
../../../_images/hk1000.10.jpg
../../../_images/hk1000.11.jpg
../../../_images/hk1000.12.jpg
../../../_images/hk1000.13.jpg
../../../_images/hk1000.14.jpg
../../../_images/hk1000.15.jpg
../../../_images/hk1000.16.jpg
../../../_images/hk1000.17.jpg
../../../_images/hk1000.18.jpg
../../../_images/hk1000.19.jpg
../../../_images/hk1000.2.jpg
../../../_images/hk1000.20.jpg
../../../_images/hk1000.21.jpg
../../../_images/hk1000.22.jpg
../../../_images/hk1000.23.jpg
../../../_images/hk1000.24.jpg
../../../_images/hk1000.25.jpg
../../../_images/hk1000.26.jpg
../../../_images/hk1000.27.jpg
../../../_images/hk1000.28.jpg
../../../_images/hk1000.29.jpg
../../../_images/hk1000.3.jpg
../../../_images/hk1000.30.jpg
../../../_images/hk1000.31.jpg
../../../_images/hk1000.32.png
../../../_images/hk1000.33.png
../../../_images/hk1000.4.jpg
../../../_images/hk1000.5.jpg
../../../_images/hk1000.7.jpg
../../../_images/hk1000.8.jpg
../../../_images/hk1000.9.jpg

Note

Specifications

Specification

Description

NAME

Educator II

MANUFACTURER

Motorola

TYPE

Training Microcomputer

ORIGIN

USA

YEAR

1977

END OF PRODUCTION

Unknown

BUILT IN LANGUAGE

Monitor in ROM

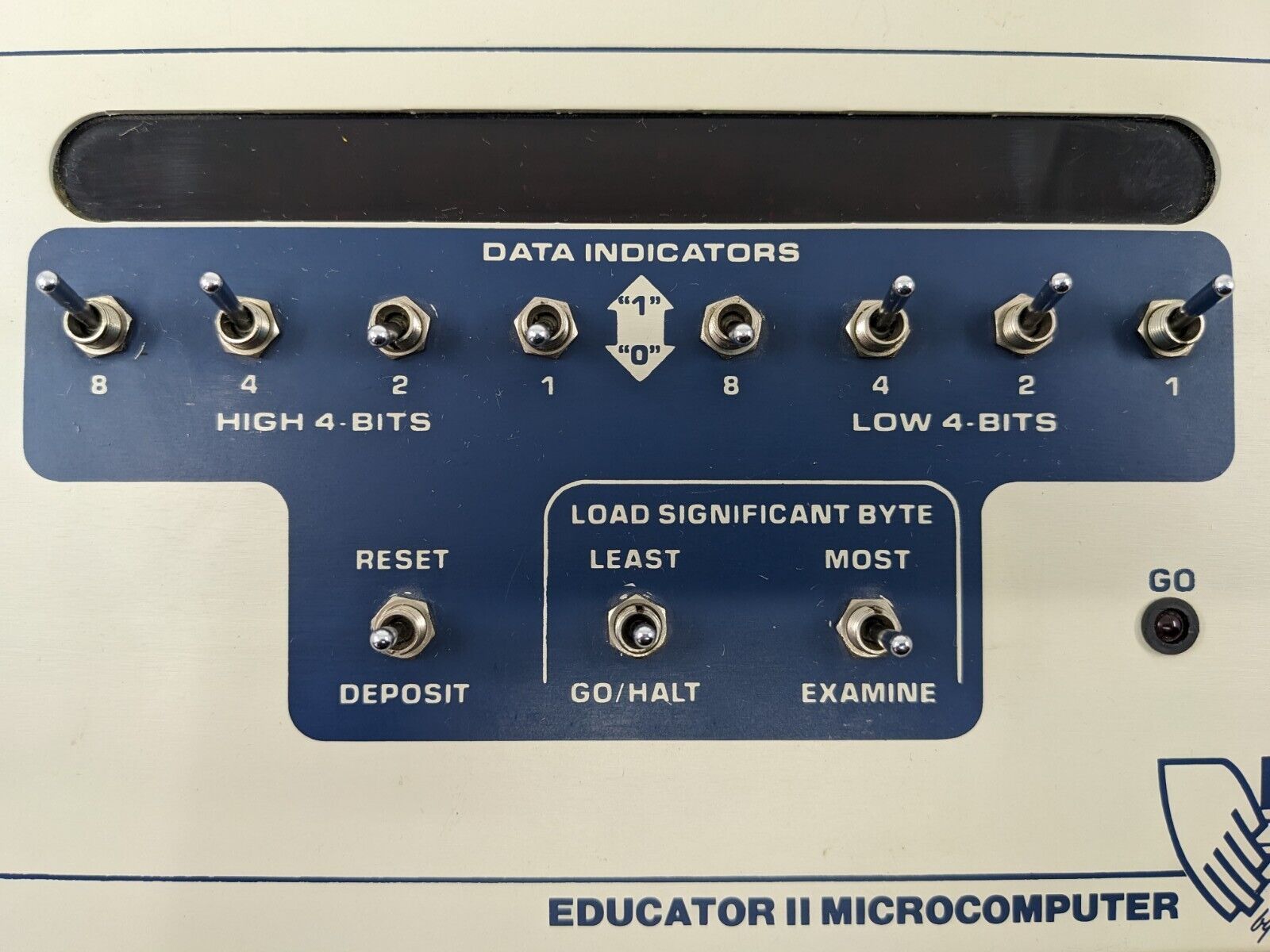

KEYBOARD

11 toggle switches

CPU

Motorola M6800

SPEED

625 KHz

RAM

128 bytes expandable to 256 bytes on main board and up to 65,536 bytes through external expander port.

ROM

512 bytes

TEXT MODES

None

GRAPHIC MODES

None

COLORS

None

SOUND

None

SIZE / WEIGHT

265 x 140 x 40 mm / 670 gr

I/O PORTS

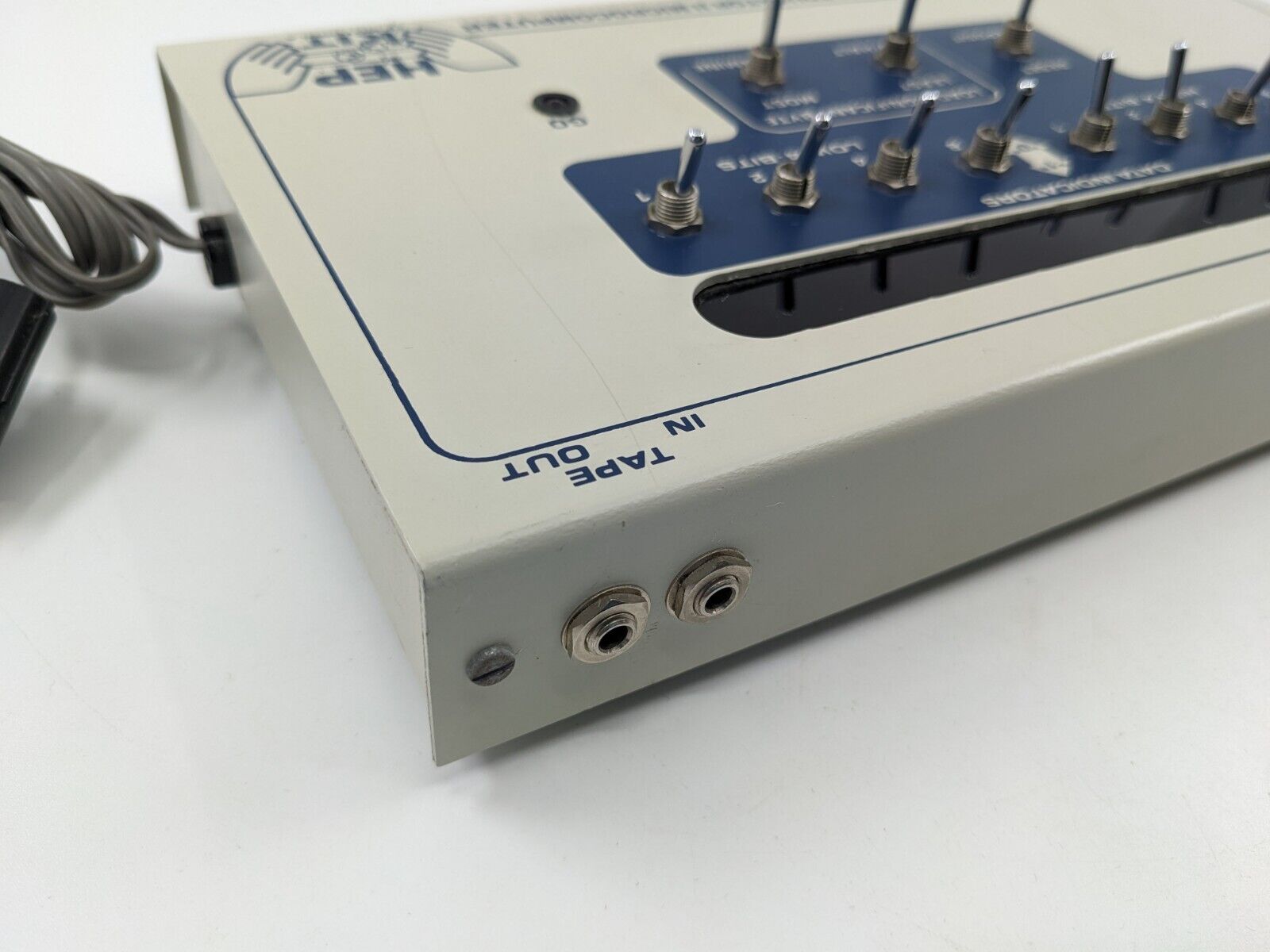

Expansion port, Tape-recorder

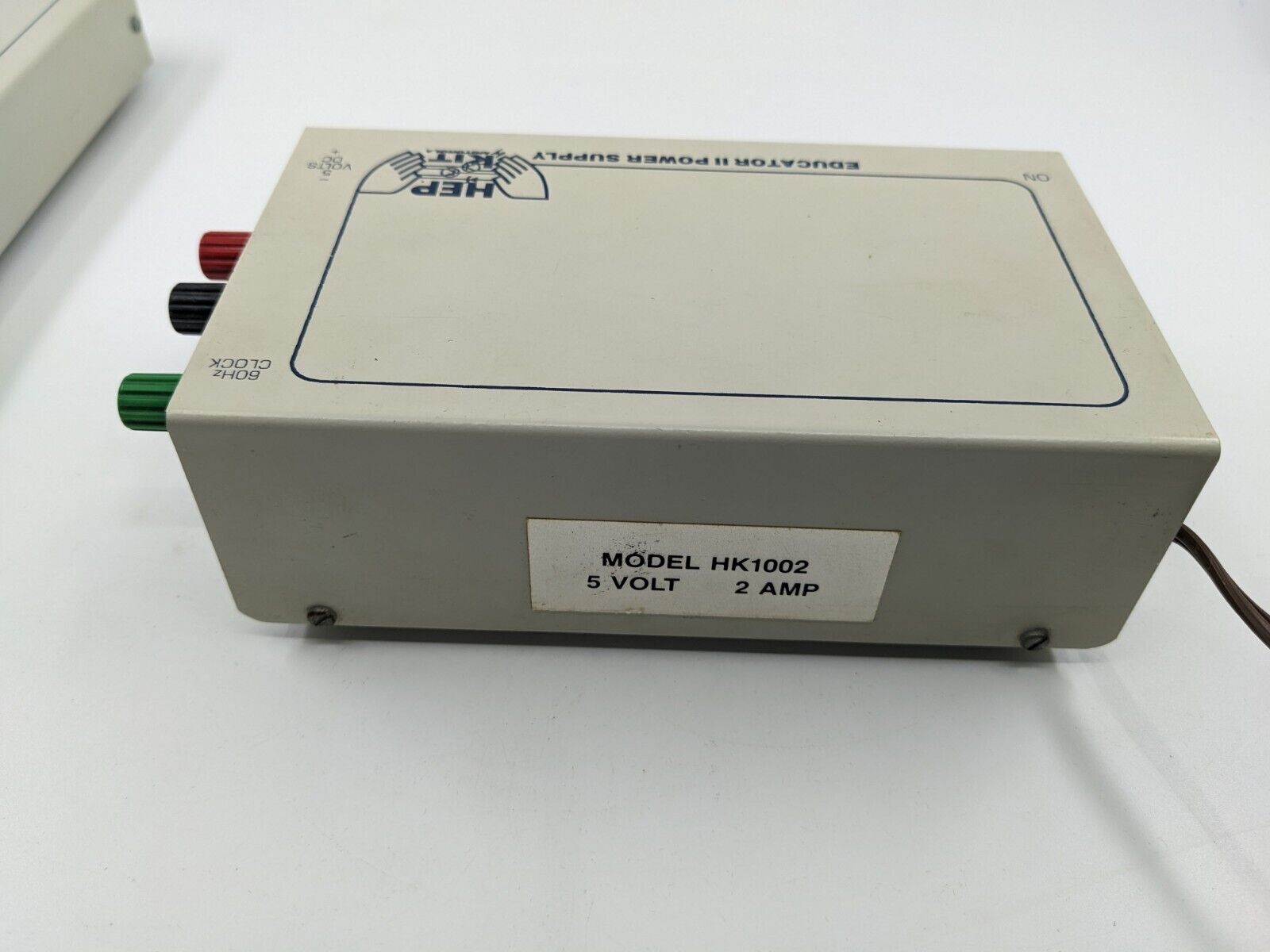

POWER SUPPLY

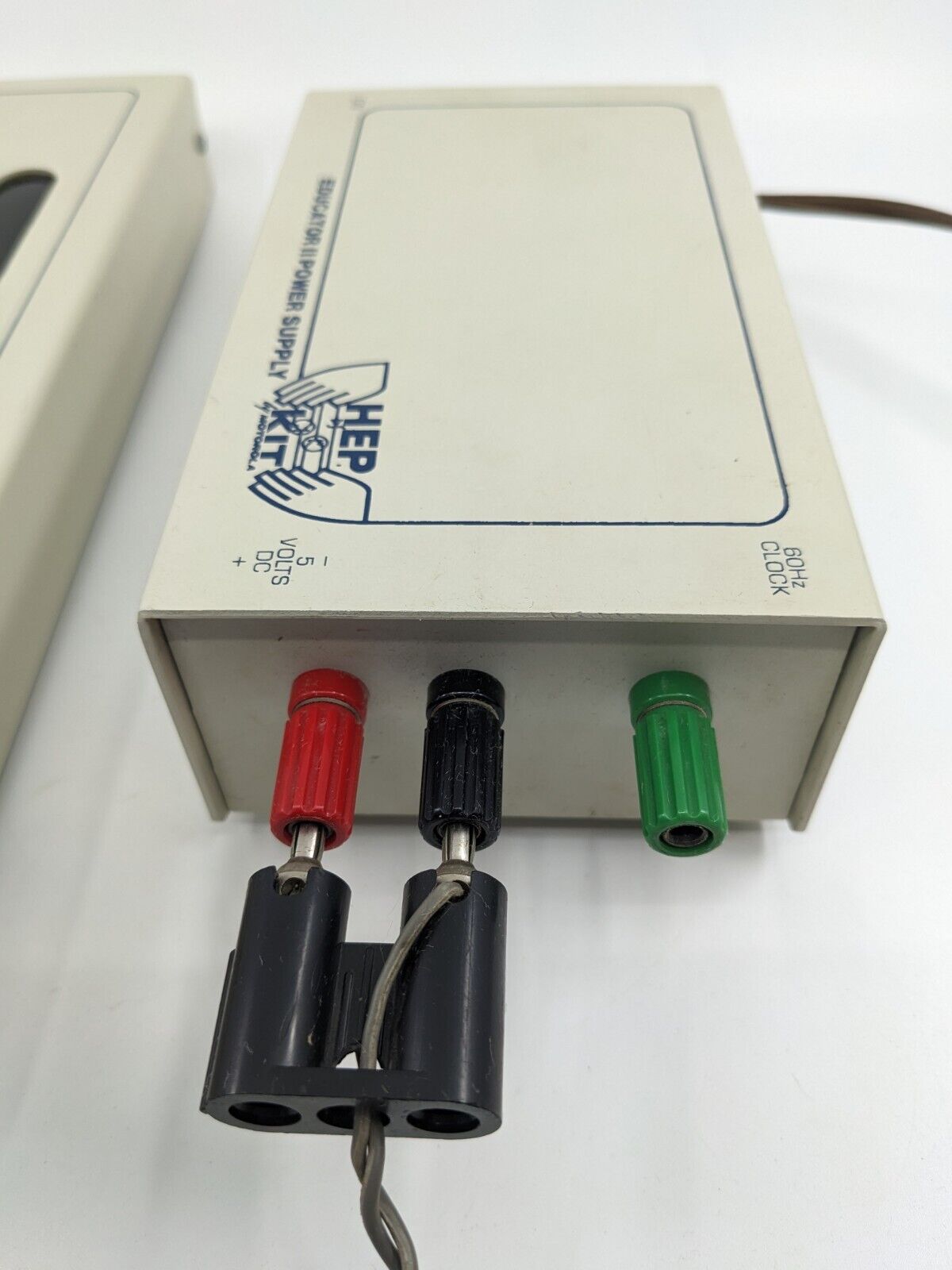

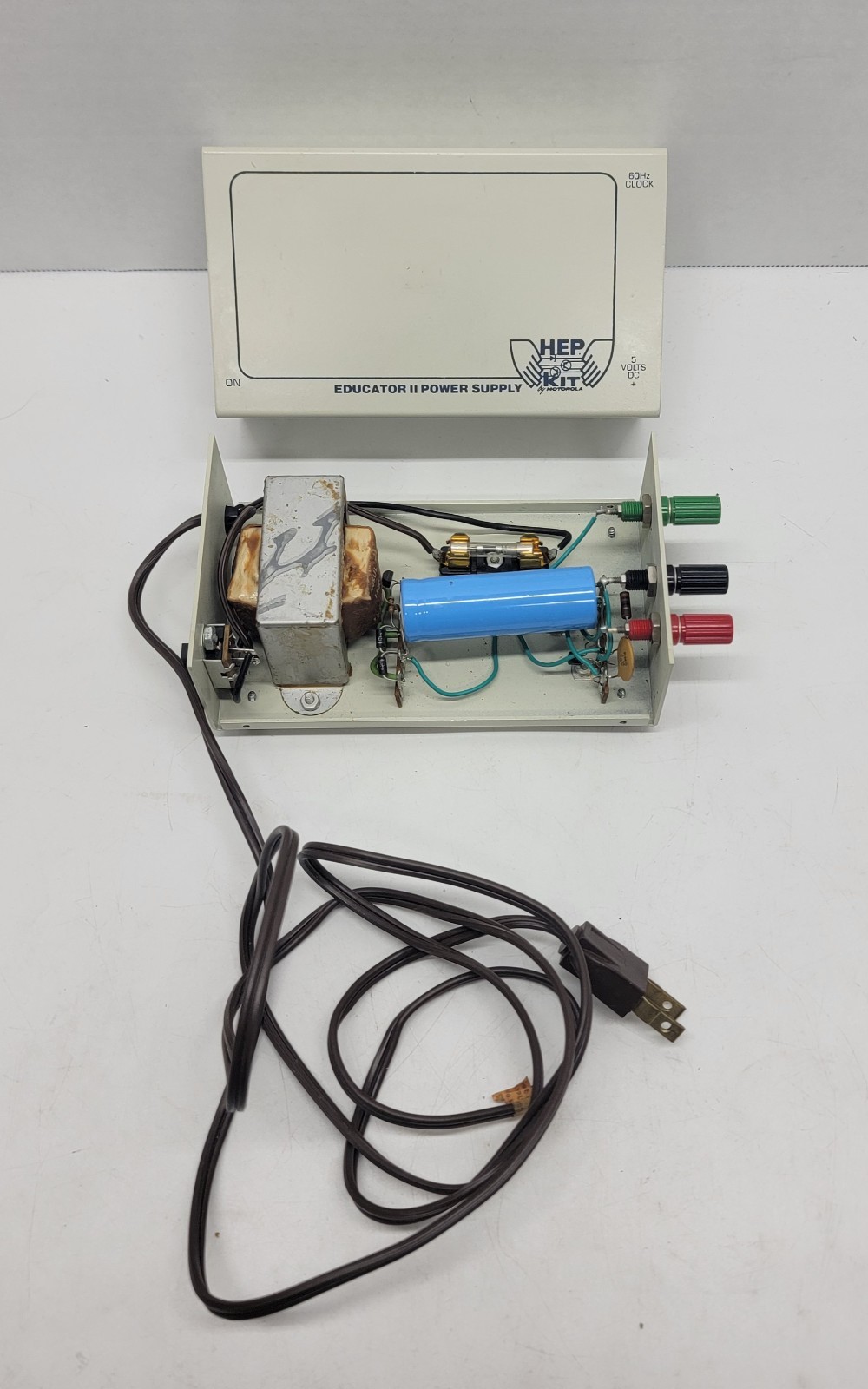

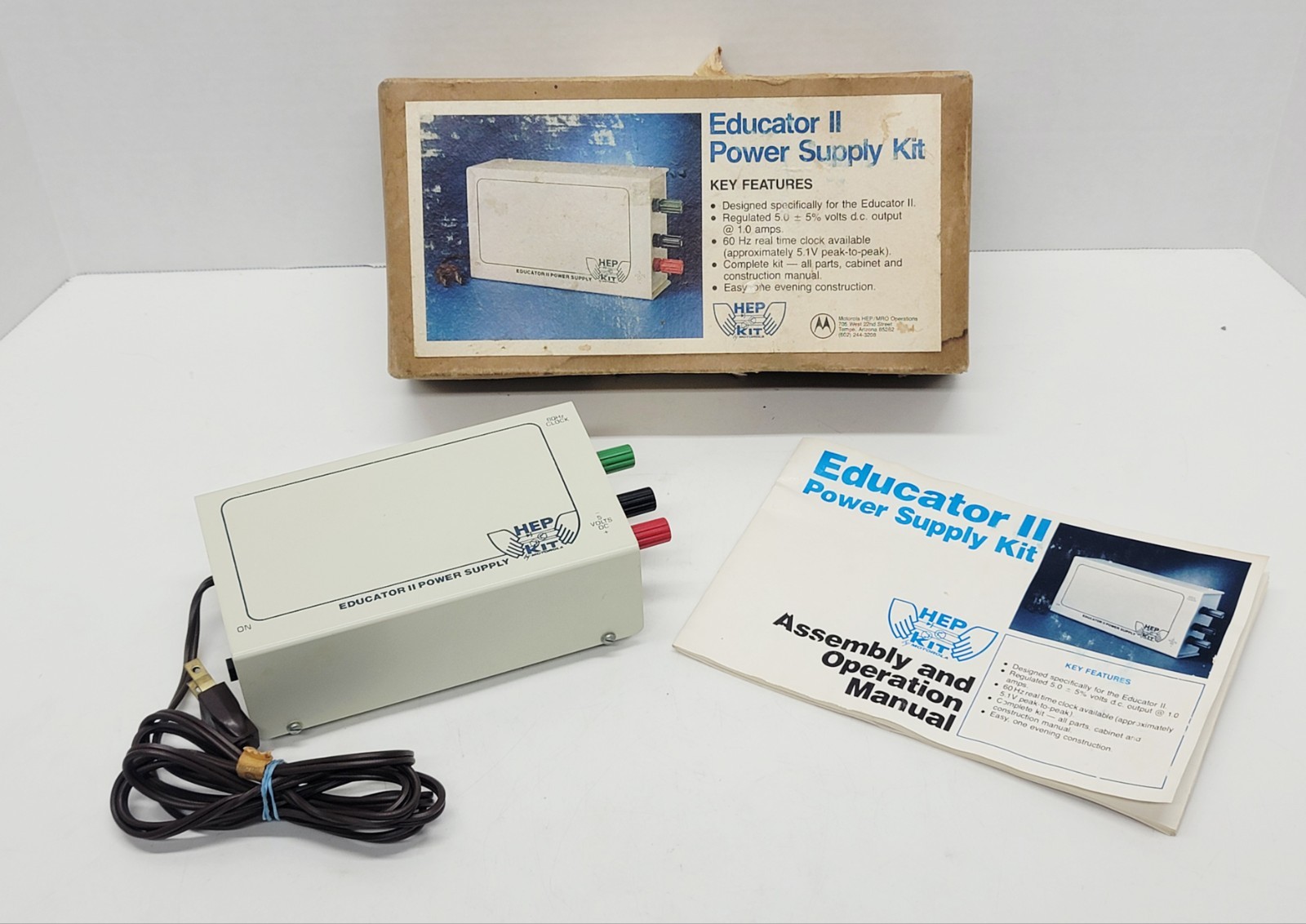

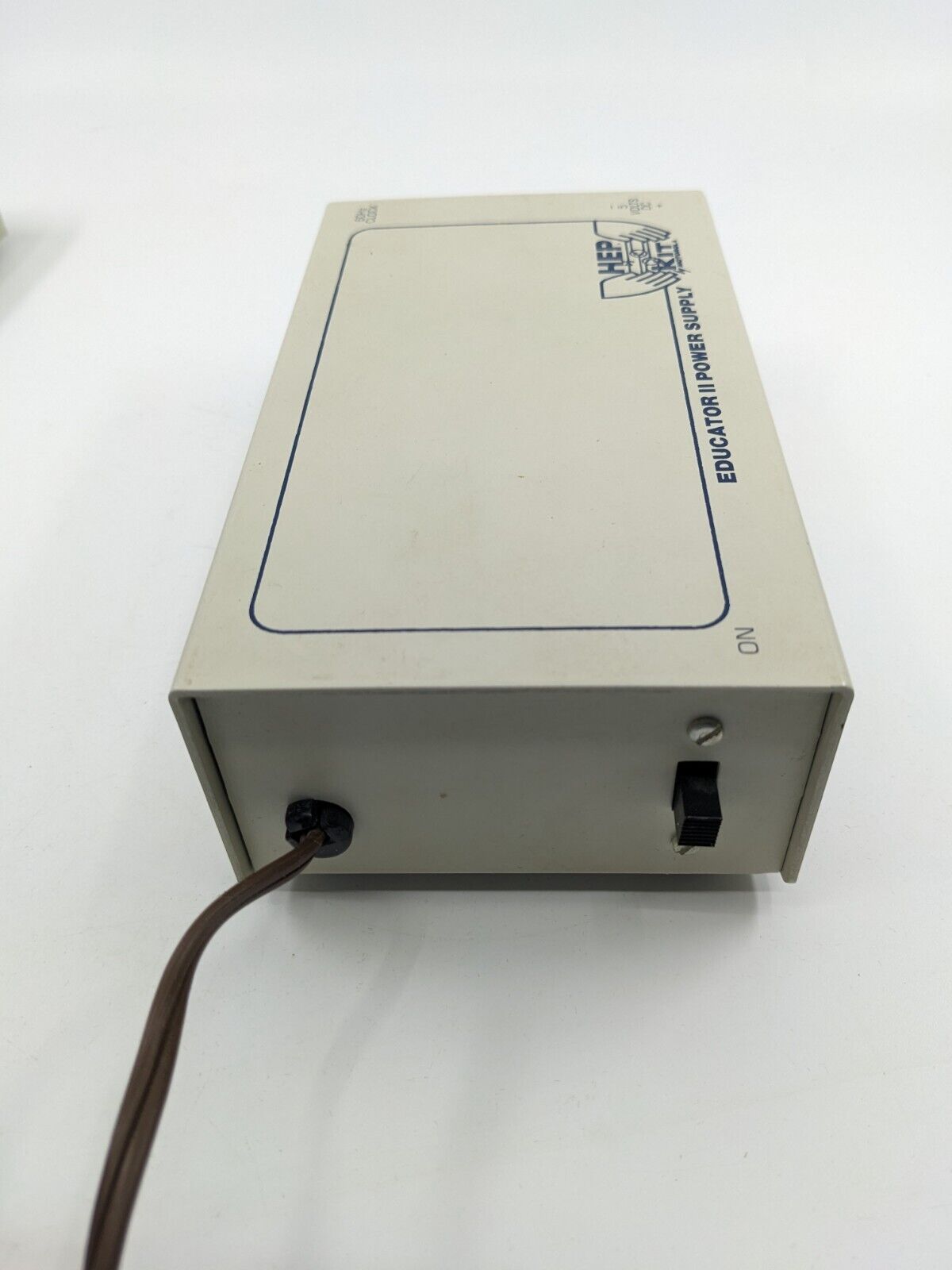

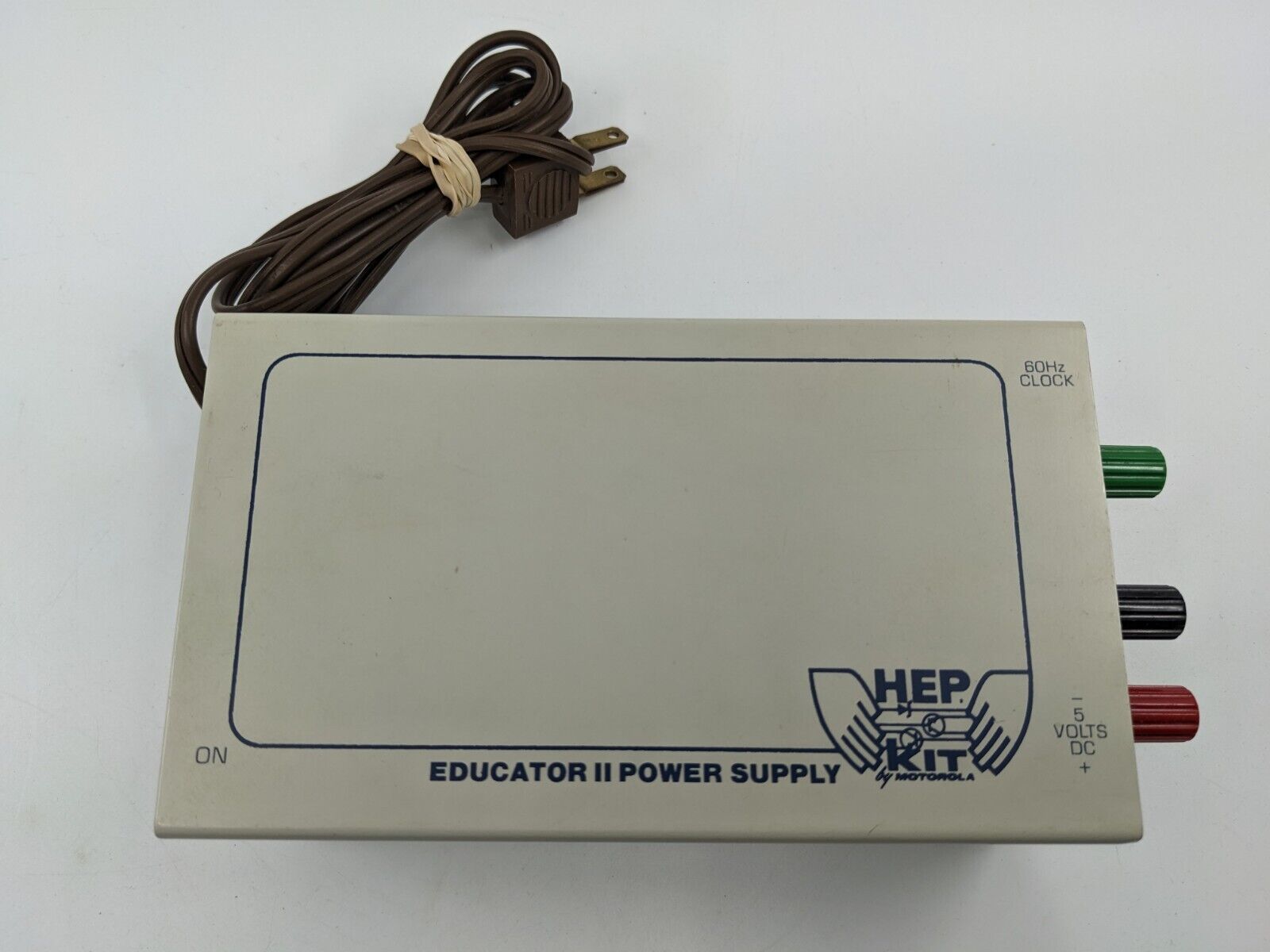

External PSU 5 VDC, 1A. Sold separately as a kit

PERIPHERALS

Cassette Recorder, RAM expansion

PRICE

$169.95 + $29.95 for Power Supply Kit

References

From the June 1977 issue of IEEE Computer magazine <HEPEducatorKit-II-3>

From the March 1978 issue of Radio-Electronics magazine <HEPEducatorKit-II-2>

Collection Information

Acquired

14-JAN-2026
