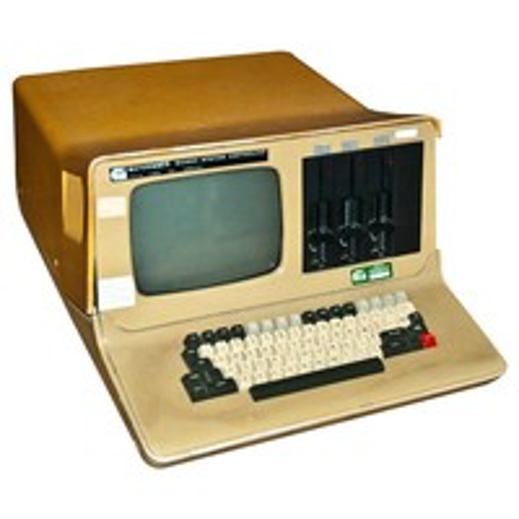

Motorola Exorset 30 Model M6809 Set 30

Note

The EXORSET 30 was created for a system of study and development primarily for professionals. It is built around a microprocessor Motorola 6809 with 64 kB of memory, backplane format EXORSISER. It is dedicated to software and hardware developments, it supports cross assembler family 6800, with a map and allows adaptation to program EPROM.

System based on the M6809 High Performance microprocessor and MC6800 microcomputer

Specification
32K of RAM
12 E/P/ROM sockets for up to 24k bytes of user code
4K bytes of monitor firmware
2K bytes of alphanumeric display RAM
2 User display formats:
80 characters per line by 22 lines
40 characters per line by 16 lines
128 characters in a 5x7 matrix
9-inch video monitor
61-key ASCII keyboard
RS-232C serial interface
OS - XDOS
Dual BASF 6106 5.25-inch mini-FloppyDrives
Enclosure:
Width) 18.3 in
Height) 11.0 in
Length) 25.2 in
Weight) 6.3 kg
Manufacture Date 1982
